Ricondizionato - Legend Milano

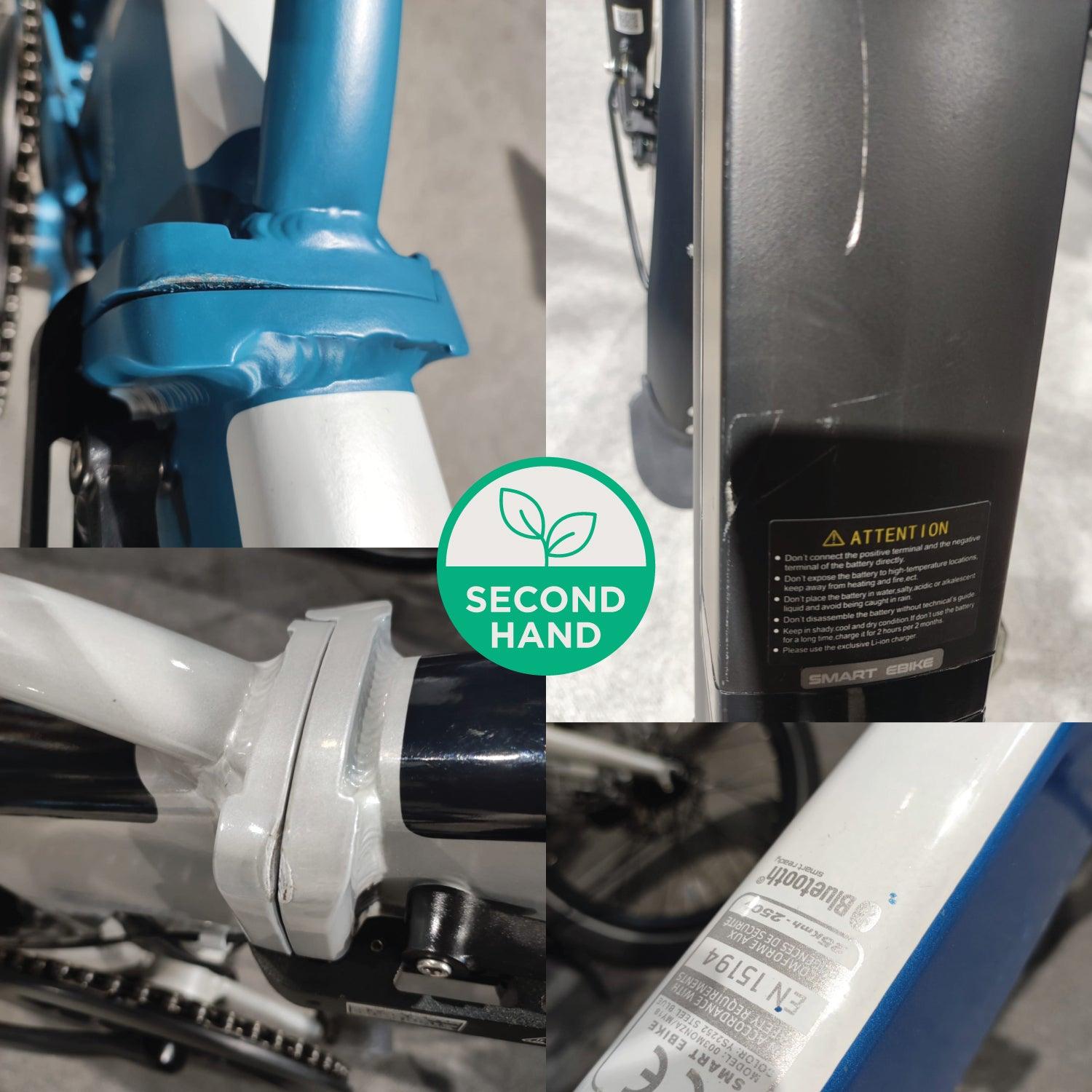

Unità ricondizionata in ottime condizioni - Biciclette testate, diagnosticate e riparate dai nostri tecnici esperti, certificate 100% funzionali.
CHF 1,543.00
Try it for 30 days
Experience Legend eBikes with our 30-day test ride offer. Choose any model from our website and enjoy a hassle-free trial period. If it's not the perfect fit within 30 days or 50 km, we'll handle the return and provide a full refund. Your ideal ride awaits - learn more on our Try a Legend eBike page.
Support and customer care
If you have a problem with your Legend eBike, our Customer Service is available by phone and via our contact form. Our team will first troubleshoot the issue remotely, send any spare parts if needed, and coordinate a solution with local bike shops near you if your issue requires professional work.
More information in our After-Sales Service and Repair page or you can Contact us if you have any question.
2-Year Warranty
We trust in our quality, which is why we offer a two-year guarantee on all components of the eBike, except for consumables.
Further information on our Warranty page.

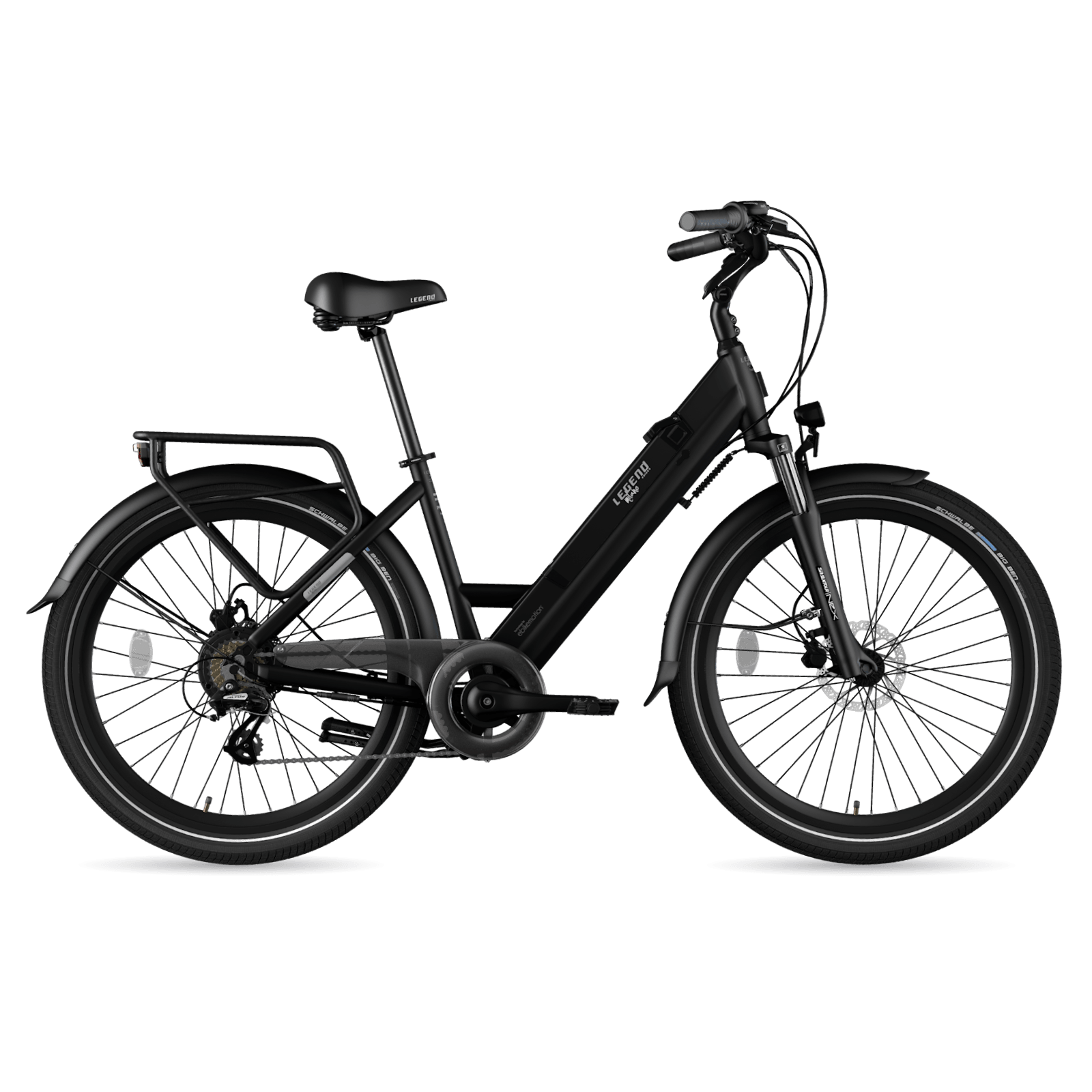

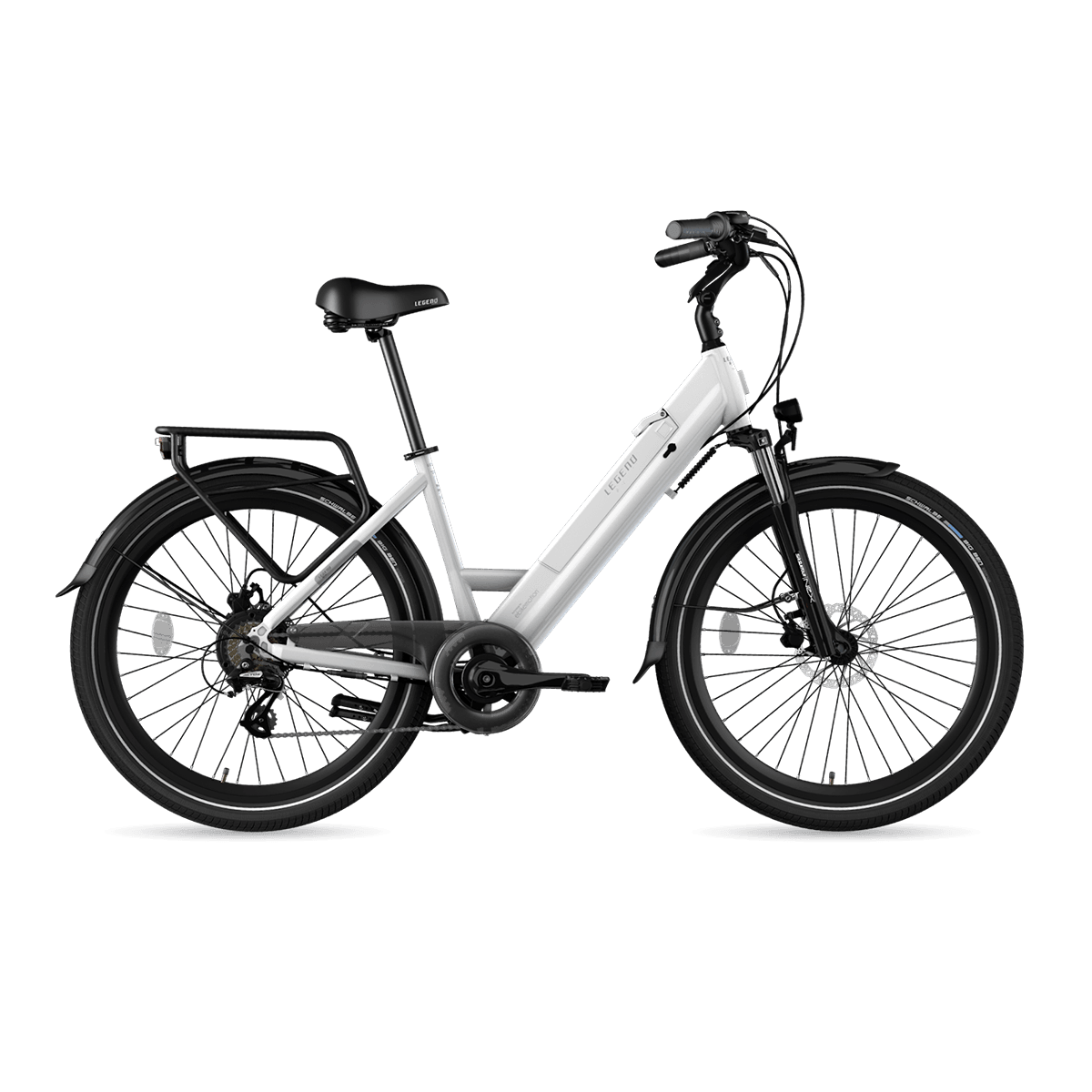

Legend Milano
This ebike is designed for its intensive use, but the style has not been left aside. We have managed to merge classic lines with the avant-garde design.
The 26″ step-through from Legend Catalogue makes its comeback with several improvements just like with other models of the new Smart range: the big balloon Schwalbe Big Ben, the Tektro hydraulic brakes or the front anchor compatible with KLICKfix transferring the weight directly to the frame without impairing maneuverability.
MAHLE Smartbike ®
Take absolute control of your Smart eBike and the environment around you thanks to the MAHLE Smartbike system and its joystick with Bluetooth connection to MAHLE MySmartbike App.
Up to 80-100 km Range*
36V integrated Li-ION battery , available in two capacities: 10.4Ah (up to 80km*) and 14Ah (up to 100km*). Fast charge in less than 6 hours.
IP67 waterproof connectors
Protected electronics and stainless components are water, dust and other inclemency resistant.
High quality components
Equipped with LED Kendo+ lighting, Shimano Altus 7 gear shifting, Schwalbe tyres BIG BEN puncture-proof effect "full suspension" and Tektro hydraulic disc brakes for safe driving.
Rack & KLICKfix
Rear carrier rack to transport objects and also suitable to adapt a child seat with a max load of 27 kg. Additionally, it is compatible with the installation of a KLICKfix adapter on the front, allowing the use of baskets and other KLICKfix system accessories.
Dimensions & weight
Ideal for people that weigh less than 100 kg and measuring between 1.55 and 1.90 m thanks to its highly adjustable handlebar and saddle.
* Maximum Range according to tests performed on a flat course without stopping, using first level of assistance, with a temperature of 20 °C and a 70 kg rider.
Strength. Elegance. Comfort.
Controller
MAHLE Smartbike
MAHLE Smartbike® electrical system for an absolute control of the bike and the surroundings. This is a German technology developed to merge the bike with its user.
MySmartbike APP
The iWoc joystick on the electric bike has buttons and LEDs indicating the basics: battery status and level of assistance. With this, the electrical system can work by itself. If you want to access the endless features provided by MAHLE MySmartbike, download and install the free APP in your IOS/Android device and link it to the bike through the Bluetooth module included in the joystick.
From your personal cloud, you will be able to see all the information regarding your ebike tour: maximum, minimum and average speed, calories consumed, altitude, route difficulty, detailed times, etc.
Available in English, German, French, Italian, Spanish and more.
Expand your mobility.
Buy now
The Milano is an electric bicycle for women or men, ideal for people of low height and up to 1.90 m, thanks to its highly adjustable handlebar and saddle.
All you need for your ride
Comfort
The big balloon tyres and the Velo gel saddle complement the front suspension so that driving feels really pleasant. The position of the handlebar is fully adjustable so that you can adapt the bike to the most comfortable pedaling posture.
Safe and Reliable
Pedal with confidence and stop your eBike just when you need it. With the Hydraulics disc brakes you will have absolute control of braking in all circumstances.
Efficiency & Performance
Choose between 2 types of removable Li-ion batteries. Both have thermal and electronic sensors BMS and cells of the best quality to feed an engine that reaches to show efficiency ratios of up to 80%.
Shimano Derailleur
With the Shimano Altus 7 speeds derailleur you can adapt to any slope without losing sight of the road, thanks to its ergonomic handle.
Ergonomic handlebar
With the multi-turn handlebar system and the adjustable saddle you can adjust the Milano whatever your build.
250W Motor
The Legend motor unit is robust and lightweight. The built-in 6 pulses per cycle speed reading sensor helps get a smoother riding experience and a more accurate speed management.
FAQ
-
The Legend Milano is a robust and elegant electric bike with quality components. Suitable for both men and women weighing a maximum of 100 kg. Its easily adjustable saddle and handlebar make it suitable for people with a height of 1.55 m to 1.90 m.
The Milano is our most robust and comfortable model thanks to its reinforced frame, its large ball tires and its Suntour Nex Fork front suspension. It is designed for long rides in the city and on trails that are not very steep.
Its rack allows the installation of the vast majority of child seats.It's a Smart eBike, meaning that you can connect it to your smartphone or to a pulsometer and track your activity and your heart rate among other things.
If you have any further questions about the convenience of this model, do not hesitate to contact our team. -
All our 250W motor eBikes are CE certified. The EN15194 certification is the first international comprehensive certification for EPAC: electric-assisted pedal bicycles that assures that our products meet the international first-class level and have a positive effect on the development of the energy-saving market.
You can download it from our Declaration of conformity page.
-
Servicing your Legend eBike locally is easy. Just let us know if you have a problem by filling out the form on our contact us page and we will connect you with a local shop as needed to get repairs completed.
Take a look at our After-Sales Service page for more information.
-
We make our shipments through DHL. Your order is prepared in a maximum of 24-48 hours and the delivery time is normally between 3 and 5 working days.
-
If you want to buy more than one unit contact us and we will be happy to offer a deal.
Also, take a look at our Second hand and Refurbished page. These are units in very good condition and also covered by our 2-year warranty.
TECHNICAL INFORMATION
-
You can download user manuals and EN 15194 Certificate from here.
-
Recommended for riders 155-190 cm.
Supports up to 100 kg.
The rack support up to 27 kg. -
Motor
Legend 250W GEARED 1:4.5 Ratio 40Nm
Boost torque: 40 Nm
Maximum Speed: 25 km/h
4 Power levels
PAS Sensor
32 pulses BB integrated speed sensor
Battery & Range
36V 10,4Ah Sanyo-Panasonic | Up to 80 km *
36V 14 Ah Panasonic | Up to 100 km * -
Joystick
iWoc Bluetooth SCI* by MAHLE Smartbike
Controller
SCU* by MAHLE Smartbike
Connectors
HIGO IP67 Waterproof
APP MAHLE MySmartbike
Connectivity: Bluetooth
OS Compatibility: iOS and Android -
Tyres
Big balloon tyres 26” 2.15
Disc Brakes
Hydraulic disc
Frame
AL 6061 T6
Derailleur
Shimano Altus 7 Speeds
Lights
Spanning Kendo+
Saddle
Velo 6123 (Gel) -
Weight
Weight with battery: 24 kg
Battery weight: 2.75 kg
Dimensions
116 x 179 x 62 cm
Axis to axis distance: 102 cm
Min-max saddle height: 84-107 cm
Tyres: 26" | Tyre width: 2.15"
ⓘ Some components may not exactly match the description or pictures and may be replaced by other components of equivalent or higher range.
